eGrip OLED
CS Version
eGrip OLED, features an OLED screen presenting watts, volts, and ohms based on the original eGrip. It boasts not only a 360-degree regulation ring to adjust output wattage (5W-30W), but also the shift function from VV mode to VW mode and battery protection function. In addition, it has six colors catering to your preference, and support eGo ONE head with its new base.
Standard configuration:
1× eGrip Mouthpiece
1× eGrip Body
2× CS Atomizer Head
1× eGrip Atomizer Base
1× 1A Wall Adaptor
1× USB Cable
1× Manual & Warranty Card
Specification
Size: 46.4mmX20.4mmX99.5mm(including mouthpiece)
Capacity: 1500mAh
Output mode: VV/VW Mode
E-juice Capacity: 3.6ml

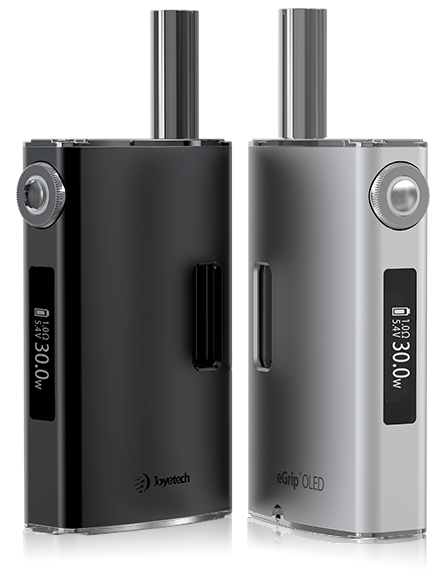

Attractive colors
eGrip OLED has six colors catering to your preference and its compact size makes it comfortable to hold.

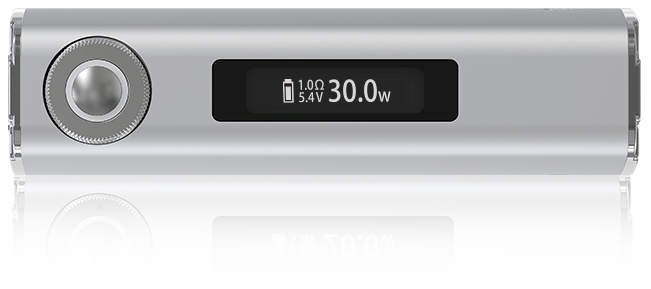

Screen Indications
The OLED screen presents electric capacity, watts and volts, resistance and timing when you are taking puffs.
Note: The wattage can be upgraded to 30W from 20W. Multiple Choices of Atomizer Heads
eGrip OLED supports not only the original eGrip CS head, eGrip RBA, but also eGo one CL atomizer head,
bringing you variable vaping experience with application of different kinds of atomizer base.
Details of eGrip OLED-CL
Data Table of Atomizers for eGrip OLED
Shift between VV/VW mode
eGrip OLED can shift from the VV/VW mode when the battery is on by pressing the round button for three times.
In VV mode, you can adjust output voltage between 2.0V-8.0V.
In VW mode, you can adjust output wattage between 5W-30W.
We kindly suggest you use 20W as maximum wattage when applying eGrip CL head.
Atomizer Head ReplacementUnscrew the big screw at the bottom with a coin,
and the atomizer head is located on the base of it.
Simply unscrew the atomizer head and replace a new one.
（Please do remember to screw up the atomizer head before use.）
Charging
It will take 2.5 hours to fully charge the battery via 1A wall adapter.
It will take 2.5 hours to fully charge the battery via 1A wall adapter.
The battery level indicator on the OLED screen will keep flashing during charging.
When fully charged, the indicator will stop flashing and go out.
