CUBOID TAP with ProCore Aries

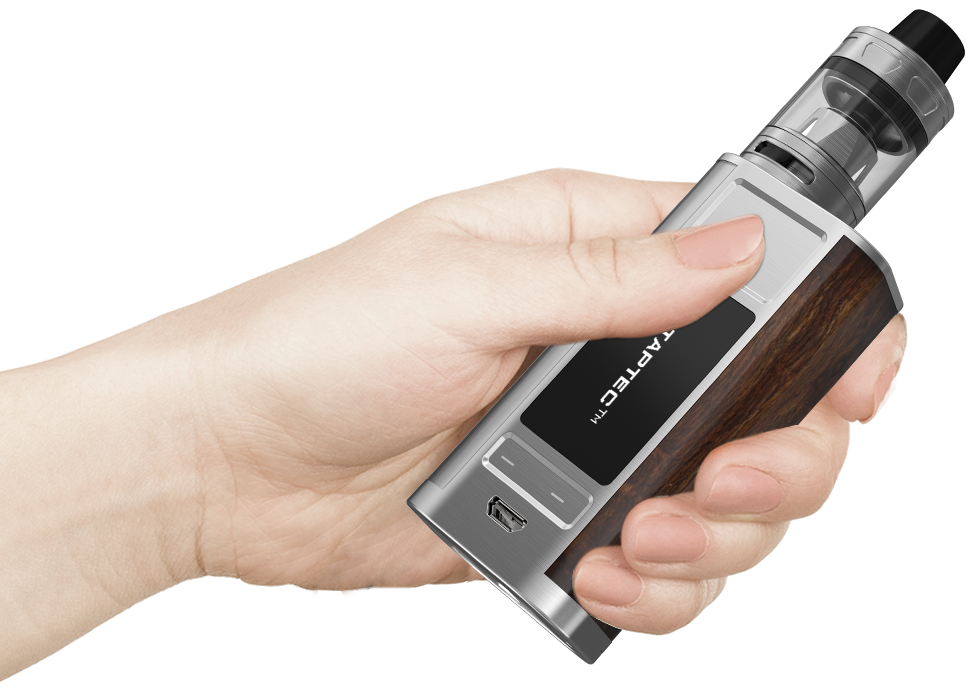

TAPTEC^TM technology changes what matters
We historically removed the physical regulatory buttons, instead, we creatively bring you the new Joyetech
TAPTEC^TM technology. Simply tap the panel, then it's all under your control.
CUBOID TAP with ProCore Aries

Introducing the much anticipated CUBOID TAP furnished with Joyetech TAPTEC^TM technology. We creatively developed the TAP buttons, paired with the pressure-sensitive system and vibration motor. It is powered by dual replaceable 18650 cells with which you can fire it up to the ultra 228W. Originated from the 12 signs, the ProCore Aries atomizer features an innovative flip type top-fill system, allowing to refill with great ease. There's a plenty of choices for you to choose from the ProC series heads, direct lung or mouth to lung, for massive vapor production and optimal flavor. CUBOID TAP is backed with upgradeable firmware and multiple functions such as 2.0A quick charge, 1.3 inch OLED display, clock, custom logo, preheat and reverse charging. With the new TAP buttons, the CUBOID TAP will redefine what you can expect out of your vaping.

Standard Configuration:

1 * CUBOID TAP (no cell)
1 * ProCore Aries atomizer
1 * ProC1 (0.4ohm) head
1 * ProC4 (0.15ohm) head
1 * Spare glass tube
1 * QC USB cable
2 * Manual
1 * Warranty card
2 * Warning card
2 * Spare parts

Parameter:

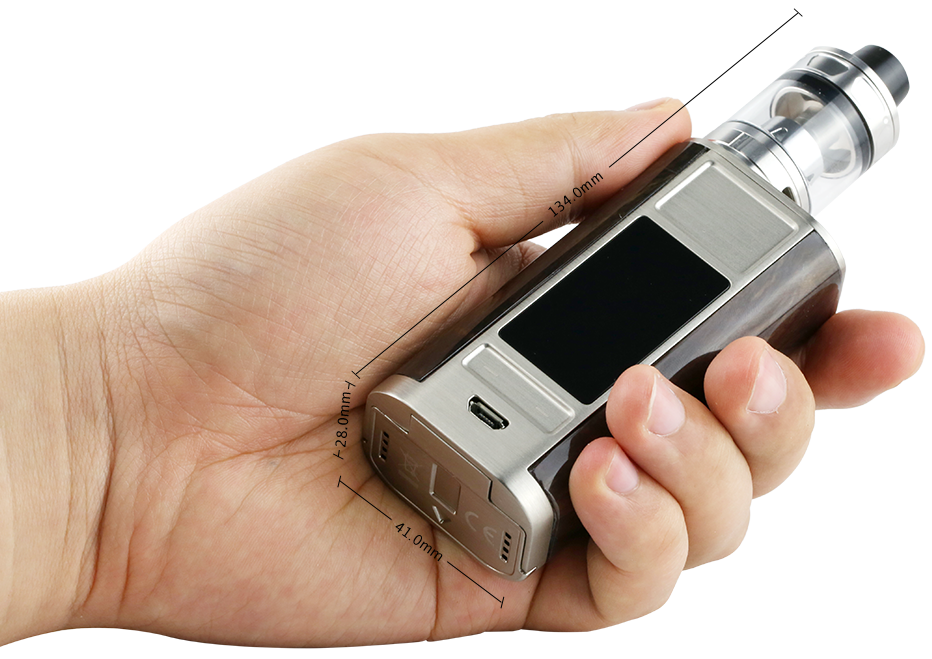

Size: 28.0mm*41.0mm*134.0mm
Colors: silver, black, red, yellow, blue
Weight: 174.5g (with coil, without cell)
Aries capacity: 4.0ml/2.0ml
Output mode: Power/Clock/Temp (Ni, Ti, SS316)/TCR (M1/M2/M3)/USB Charge mode
Applicable heads: ProC series heads
Features: TAPTEC^TM, pressure-sensitive, vibration motor, 2A QC,
Features: power bank, preheat, custom logo, real-time clock
Output range: 1-228W
Depth of 510 pins applicable: 4.0-5.5mm
Resistance range: 0.05-1.5ohm under Temp/TCR mode
Resistance range: 0.1-3.5ohm under Power/Clock mode
Temperature control: 100-315°C/ 200-600°F
Battery using: dual married high-rate 18650 cells
Battery using: (continues discharge current

25A)
Max charging current: 2.0A
Max output current: 50A

Pressure-sensitive capability applied

Thanks to the advanced technology in our time. The CUBOID TAP adopted the pressure-sensitive system inside, with which you can active the menu by clutching the device in sequence.

Power on condition:
3 times to lock/unlock tap buttons
4 times to activate the menu
5 times to turn stealth on/off

Power off condition:
3 times to set TCR value
4 times to turn screen upside down
5 times to check battery voltage

Vibrates once taps

The vibration motor is built in such a way that it is partially off-balanced. Once you tap the panel,
it vibrates to indicate that the adjustment is made.

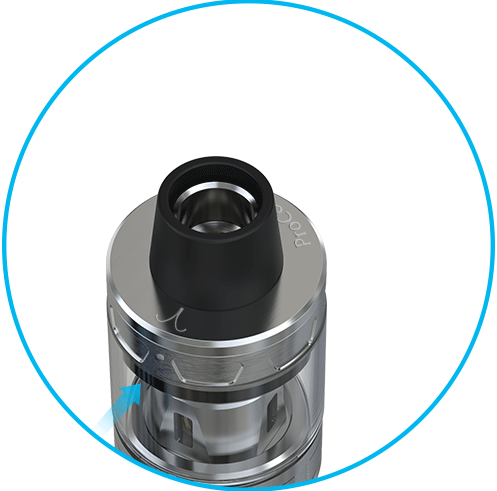

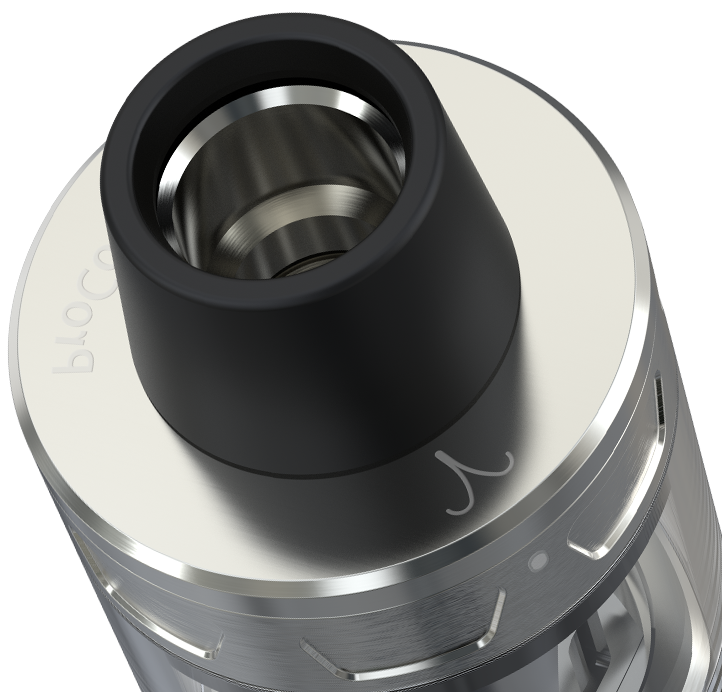

Flip type top-fill design

Simply push and pull the top cap to reveal the filling hole then you're free to fill the e-liquid. Simple and convenient.

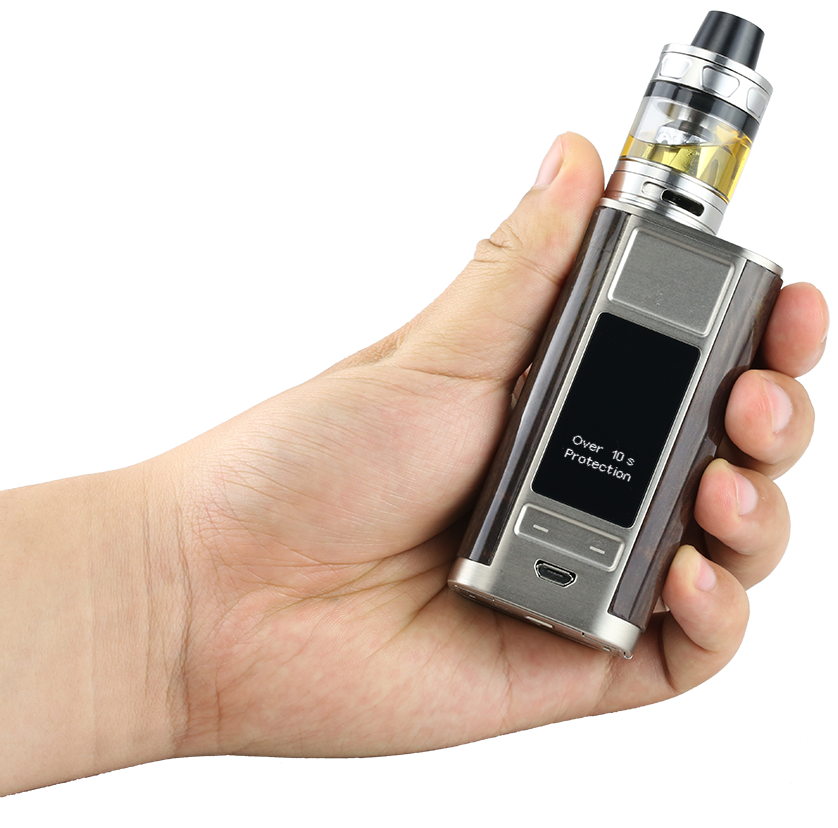

Vape in a safe way

For safety reasons, if you hold the fire button for 10 seconds, the device will shout down automatically. Press the fire button 5 times to turn it on again.

228W with 50A maximum output current

The CUBOID TAP is powered by dual 18650 high-rate batteries where max output can be reached to 228W. It
offers more possibilities when using various coils with its 50A maximum output current.

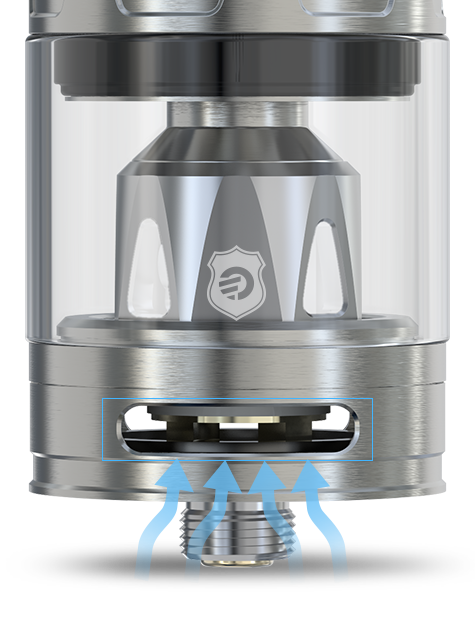

Balanced flavor and clouds

The bold airflow structure on the ProCore Aries atomizer was designed to deliver massive vapor production without
compromising its optimal flavor using with the brand-new ProC series heads.

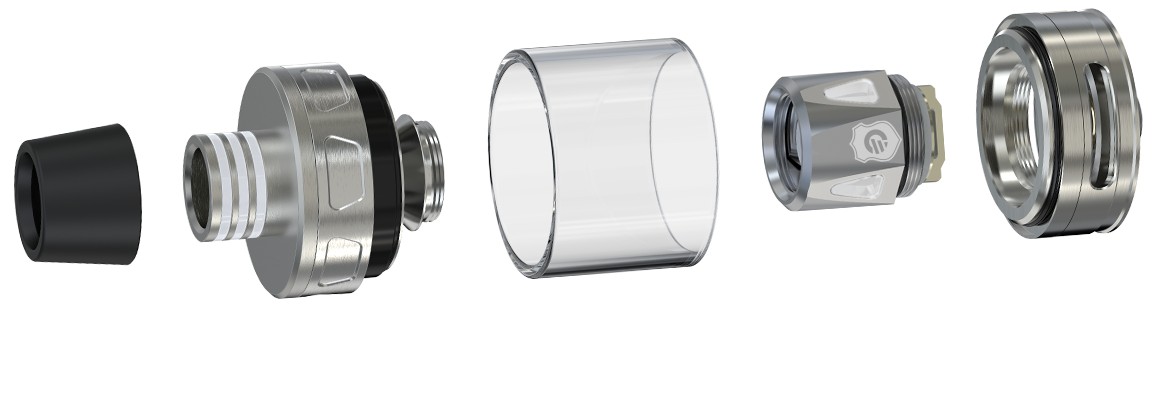

Detachable structure, easy to clean

The ProCore Aries atomizer can be easily detached and is able to wash separately.

2ml version also included

Apart from the normal 4.0ml e-liquid capacity, we also have 2.0ml version which is TPD regulated.

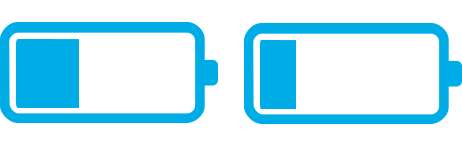

Equalizing charge system

Equalizing charge technology was applied in order to bring all cells to an equal state of charge.

Innovative buck-boost technology

The CUBOID TAP adopts the innovative buck-boost technology to provide much steadier output power.than normal ones when using the Avatar quick charger (sell separately).

Quick charge system

The CUBOID TAP has 2.0A maximum charging current with which it can get fully charged more quickly than normal ones when using the Avatar quick charger (sell separately).

Power bank for reverse charge

The CUBOID TAP can be served as a power bank to charge other e-cigarettes or electronic devices. Install the new reverse charging adapter (sell separately) on the 510 connector.

	Onboard reverse polarity protection The onboard reverse polarity protection protects the device from damage in the event of reverse battery installation.
Dual circuit protection It applies two sets of battery protection circuit system, realizing overall battery protection of over-charging, over-current and over-discharging, which makes it more safe and reliable.

Applicable for various tanks

The exquisite spring loaded 510 connector of the CUBOID TAP is applicable for tanks with 510 length ranged at 4.0mm to 5.5mm.Tanks are also free to go up to 25mm diameter as you prefer.

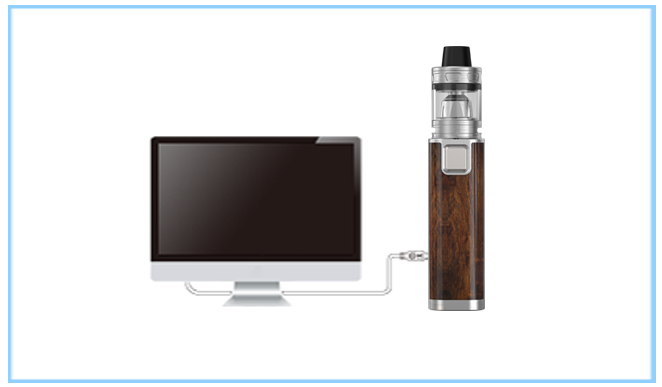

Upgradeable firmware

CUBOID TAP comes with the upgradeable firmware.
Having the latest firmware, real-time clock, preheat, custom logo, and reverse charging are all available.
CUBOID TAP with ProCore Aries

Charging

Please always use married high-rate 18650 cells, don't mix with different brands. The CUBOID TAP adopts new equalizing charge system which
supports quick charge capability with max charging current up to 2.0A. You can also take out the cells and charge them in a stand alone charger.
